Buddy Rhodes Pure Collection™ Pigments
Mixed with duoMatrix™ NEO

Buddy Rhodes Pure Collection™ Pigments <br>Mixed with duoMatrix™ NEO

Buddy Rhodes Pure Collection™ Powdered Pigments are proven for adding uniform and consistent color to polymer modified gypsum products such as Forton™ MG and duoMatrix™ NEO.  Visit buddyrhodes.com for more information on Pure Collection™ pigments.

A variety of the pure pigments have been tested for effectiveness at different loading levels with duoMatrix™ NEO and the results are presented below. We preface these results by saying that particle size and density will vary by pigment causing potential variability in the results you get. Other variables such as quality and surface texture of your rubber mold (i.e. urethane vs. silicone, type of release agent, etc.) will affect your outcome. Small scale testing for your specific application is recommended before using on an larger scale.

What you will Need: measuring containers and a large mixing container. A mechanical mixer (turbine mixer) attached to a variable speed drill is required to blend all ingredients.

Dispensing and Mixing; The procedure for adding powdered pigment is somewhat complicated but you can be successful if you follow directions. Read the technical bulletin for duoMatrix™ NEO before using. NEO Part A is a powder. NEO Part B is a liquid. We recommend using a 100A : 70B mix ratio for NEO when adding powdered pigments. An accurate gram scale is required.

Calculating the amount of powdered pigment is measured as a percentage of NEO Part A. The pigment is then added and pre-mixed with liquid Part B for easier dispersion. The pigment and Part B pre-mix is then combined with the measured amount of Part A powder.

Loading Rates - Recommended loading rates range between 1% and 5% of the NEO Part A powder by weight for most powdered pigments. IMPORTANT - The cure time for castings with pigment is extended, depending on the amount added.

Combining Pure Collection™ Pigments With duoMatrix™ NEO

  1. Determine the amount of duoMatrix™ NEO required for your project (refer to our online material calculator)
  2. Using a gram scale, weigh out the appropriate amount of Part A of NEO into a container and set aside.
  3. Measure appropriate amount of powdered pigment (as a percentage of Part A) in a separate container.
  4. Measure appropriate amount of Part B in a separate container.
  5. With the turbine mixer immersed in mixing container, gently sift powdered pigment into liquid Part B. and mix until completely blended, and lumps disappear (30 - 60 seconds).
  6. Gently sift NEO Part A powder into to pigmented Part B liquid and drill mix until dry powder is thoroughly dispersed and lumps disappear. (Min. 60 to 120 seconds depending on quantity). Mixture should have a creamy consistency.
Measuring Example Using 5% Powdered Pigment
Steps 1 ‑ 2 Step 3 Step 4 Step 5 Step 6
Part A Pigment Part B Pre-Mix Combine
100 parts 5 parts 70 parts Pigment + Part B Pre-Mix + Part A



BUDDY RHODES PURE COLLECTION™ PIGMENTS
WITH duoMatrix™ NEO COLOR EXAMPLES

X = Not Recommended - Pigment will have no effect beyond previous level.

Black Oxide
1% 3% X
Carbon Black
1% 3% X
Cobalt Blue
1% 3% 5%
Cool Gray
1% 3% 5%

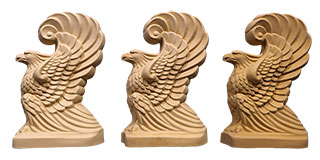

Curry
1% 3% 5%
Green Blue
1% 3% 5%

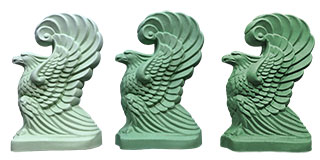

Green Oxide
1% 3% 5%
Moss Green
1% 3% 5%
Red Oxide (BS)
1% 3% 5%
Red Oxide (YS)
1% 3% X
Redwood
1% 3% X

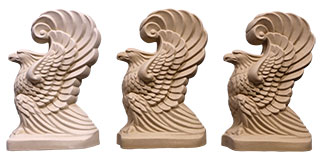

Sesame
1% 3% 5%
Super Blue
1% 3% X
Super Green
1% 3% X
Super Red
1% X X
Super Violet
1% X X
Super Yellow
1% 3% X
Teal Blue
1% 3% 5%
Titanium White
1% 3% X
Ultra Blue
1% 3% 5%
Ultra White
1% 3% X
Walnut
1% 3% 5%
Warm Gray
1% 3% 5%
Yellow Oxide
1% 3% X
