UVO™

UVO™ *NOTE: Product Packaging May Vary

Technical Bulletin and SDS

UVO™ Colorants are concentrated, phthalate-free urethane color pigments that resist ultraviolet light. By adding a small amount of UVO™ to a Smooth-On epoxy, urethane rubber, plastic or foam product, these pigment dispersions will yield opaque castings (vs. SO-Strong™ color tints that can yield translucent urethane castings). For glowing fluorescent color effects, use Ignite™ colorants.

Features

UVO™ colorants are highly concentrated, offer excellent dispersion and consistent color. A very small amount will color a proportionally large amount of liquid epoxy or urethane. The more you add in proportion to the volume of liquid material, the more dramatic the color effect. Recommended loading range is .01% to 3% of total system weight. Do not overload the liquid system or cure inhibition / oozing may occur.

User determines amount to add: If this is your first time adding color color tint or pigment to an epoxy or urethane system, you may want to test the color effect by adding a few drops to a small amount of material and observe the outcome. It may take a few test castings to attain the desired color outcome. Important: Results may vary depending on UV resistance of epoxy or urethane product.

Instructions

To get you started, we offer the following colorant loading levels. Results may vary.

By Weight Using A Gram Scale: Add UVO™ colorant at a ratio of between 0.01% - 3% of the total weight (Parts A + B mixed) of the material being cast. Concentrations above 1% yield a solid opaque color. Adding more than 3% by weight may cause cure inhibition.

By Volume Measured In Drops: Add 10 drops of UVO™ per 3 oz (88 ml) of mixed material. If using a translucent material (like Smooth-Cast™ 325 or EpoxAcast™ 690) you can use 1 drop to maintain translucency of the material.

Directions For Use: Store and use at or near 73°F / 23°C. Wear vinyl gloves to prevent skin contact. After dispensing the required amount of material Parts A and B into measuring containers, add colorant to Part B and mix thoroughly. Combine Parts A and B into a mixing container and mix as directed by the product technical bulletin.

Blending Colors: Combine different colors on a palette to create a custom color before adding to material as directed above. Colors shown in our literature and on our website are for general reference only and Smooth-On assumes no responsibility for color accuracy or matching. Results will vary from one material to another. The end user is solely responsible for determining color suitability and accuracy. Small scale testing is recommended.

The Pantone Color Matching System is most commonly used in the printing industry to communicate color. As it relates to Smooth-On color tints and pigments, the represented color is an approximation and people’s interpretation of these colors may vary. The user will determine suitability of a color or combination of colors for the rubber, resin, foam or other product used specifically for their application. Due to the variability in products that are being colored, application, color concentration and other factors, Smooth-On makes no warranty with regards to the color.



Related Categories: Urethane Rubber, Urethane Resins, Urethane Expanding Foams, Epoxy Casting and Laminating Resins, Epoxy and Urethane Coatings, Colorants, Paints & Fillers

Related Series: UVO™ – UV-Resistant Pigments for Urethane and Epoxy, Urethane Rubber Accessories – Take Your Urethane Rubber Further, Urethane Resin Accessories – Take Your Urethane Resin Further, Epoxy Accessories – You Can Do Even More, Expanding Foam Accessories

How-To Articles

video

How To Cast a Resin Cosplay Helmet

How To Cast a Resin Cosplay Helmet

Jon N. shows us how he brushes Smooth-Cast 57D to make a helmet for cosplay.

 View How-To Article

video

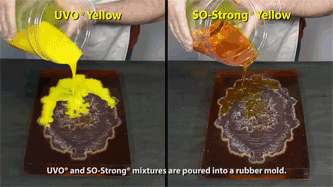

UVO™ and So-Strong™ Comparison
